Features
Ideal for constructing small, high-accuracy stages.
- Customization, including water cooling and forced air cooling
- Supports EtherCAT, MECHATROLINK-III, and CC-Link
Specifications and Dimensions

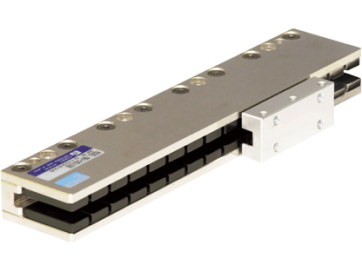

τLinear NLA-S Type individual Specifications and Dimensions
| Motor model | NLA- | 7SLB | 13SLB | |
|---|---|---|---|---|
| Rated thrust | N | 7 | 13 | |
| Maximum thrust | N | 21 | 39 | |
| Rated output | W | 10.5 | 19.5 | |
| Rated current | A | 1.0 | 2.0 | |
| Maximum speed*1 | m/sec | 3.0 | 3.0 | |
| Applicable power supply | ACV | 100 | 100 | |
| Coil unit | Model | CLS | 7LB | 13LB |
| Weight | kg | 0.05 | 0.1 | |
| Magnet base | Model | MBS | Select from 48B (47.8 mm) / 96B (95.8 mm) / 192B (191.8 mm) | |
| Weight | kg | 48B：0.25kg/96B：0.45kg/192B：0.9kg | ||
| Paired driver model | ||||
| VPH Series | NCR-H□ | 1051A-B-□□□ | 1101A-B-□□□ | |
| Download dimensions | ||||
| Motor model | NLA- | 7SLB | 13SLB | |
| Rated thrust | N | 7 | 13 | |
| Coil unit model | CLS | 7SLB | 13SLB | |
| Dimensions | PDF DXF STEP | PDF DXF STEP | ||
| Magnet base model | MBS48B | PDF DXF STEP | ||
| MBS96B | PDF DXF STEP | |||
| MBS192B | PDF DXF STEP | |||
* The specification values are those obtained when a heat sink (aluminum plate) is mounted on the coil unit and operated at an ambient temperature of 25°C. For details, refer to the individual specifications in the catalog.
*1 Maximum speed for the motor. The actual speed depends on the sensor resolution. Refer to the Linear encoders section in the τLinear servo motor catalog.
Common specifications
| Ambient temperature for use | 0 to 40℃ |
| Ambient humidity for use | 85%RH or less, no condensation allowed |
| Installation location | Avoid any harmful atmosphere including corrosive gas, grinding oil, metal dust, and oil. Indoors, away from direct sunlight. |
| Sea level | Sea level: 1,000 m or less |
| Installation direction | Horizontal, vertical |
| Cooling method | Natural cooling |
| Insulation class | Class F |
| Insulation withstand voltage | 1500 VAC, 1 minute |
| Vibration resistance | 1G (3 directions, 2 hours each) |
| Shock resistance | 5G (3 directions, 3 times each) |
